Customized 75 micron Polyester Wire Mesh Screen 100% Monofilament
Description for the polyester bolting cloth:
Polyester printing mesh commonly used in ceramic printing,glass printing,electronic components ,graphic printing,metal printing,chemical printing,platic printing. and so on,it can save many cost to product what you want.
| Material | 100% polyester ,monofilament yarn |
| Mesh count | 13T/30mesh/inch - 165T/420 mesh/inch |
| Max width. | the max width upto 3.60 meter.high mesh upto 3.05meter |
| Color | white , yellow , red . |
| Quality | With high quality domectic and imported raw material,advanced weaving looms and test instruments. |
Characteristic for this polyester wire mesh:
1).Good diathermancy;
2).Acid resistant alkali resistant;
3).Long work life printing material;
4).Hard wear printing material;
5).Faster turnaround time from the screen room to the pressroom;
6).High air permeability printing material;
7).Three warehouse for manufacturing
8).Imported weaing machine from Switzerland and Itday,Germany.

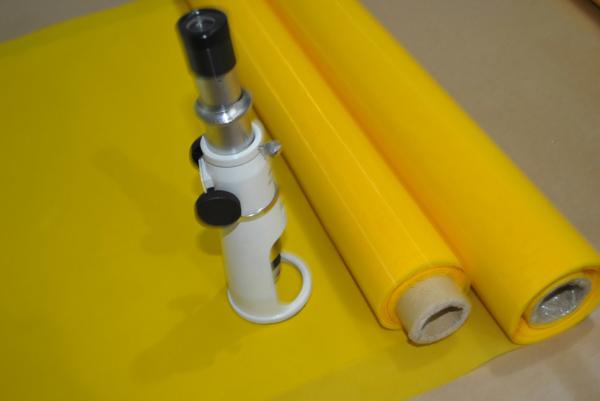

Photo For The Polyester Wire Mesh :
WARPPING WEAVING For The Polyester Wire Mesh:
Workshop Photo For The Polyester Wire Mesh:
Inspection For The Polyester Wire Mesh:
Manufacturing Process For The Polyester Wire Mesh:
Yarn→Warping→Drawing In Heddle→Drawing In Reed→Weaving→Insitial Survey→Washing→Heat Setting Treatment→Product Inspection→Product.
Application For The Polyester Wire Mesh:
Printing mesh are widely used in T-shirt printing, Graphics printing, Cosmetic Bottles,Ceramics, Glass,Garment printing, electronic components
PCB,CD/DVD,Solar battery ect.
How To Select The Suitable Bolting Cloth?
| Objects printing | 165T/420-31;150T/380-31;140T/355-31;120T/305 34;100T/255-40. |
| Ceramic & tiles printing | 165T/420-31;150T/380-31;140T/355-31;120T/305-34;100T/255-40;77T/195-55;62T/160-100.43T/110-80;36T/90-100;32T/80-100;12T/30-150. |
| Glass printing | 165T/420-31;150T/380-31;140T/355-31;120T/305-34;100T/255-40;90T/230-48;77T/195-48;62T/160-6468T/175-55;43T/110-80. |
| Textile printing | 150T/380-31;140T/355-31;120T/300-34;100T/255-40;77T/195-48;62T/160-64;54T/137-64;47T/120-55;43T/110-80;40T/100-80;36T/90-100;32T/83-100;16T/40-200;12T/30-150. |
| Credit card printing | 150T/380-31;120T/300-34;100T/2555-34;71T/180-55. |
| Dashboards printing | 165T/420-31;150T/380-31;140T/355-31;120T/305-34;110T/280-34;90T/230-48;36T/90-100 |
Company Certifaction For The Polyester Wire Mesh:
